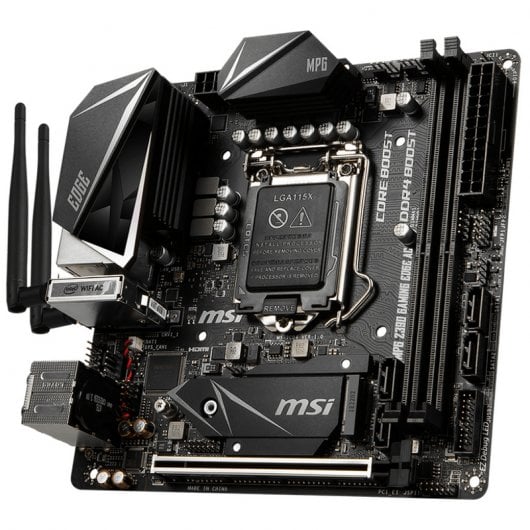

MSI Mpg Z390I Gaming Edge AC

La placa gaming MSI Mpg Z390I Gaming Edge AC tiene socket Intel 1151 y soporta procesadores Intel de 8ª y 9ª generación.

Especificaciones:

• Processor
  • Supports 9th / 8th Gen Intel® Core? / Pentium® Gold / Celeron® processors for LGA 1151 socket
• Chipset
  • Intel® Z390 Chipset
• Memory
  • 2 x DDR4 memory slots, support up to 32GB
  • Supports DDR4 4600(OC)/ 4533(OC)/ 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
• Slots
  • 1 x PCIe 3.0 x16 slots
• Onboard Graphics
  • 1 x DisplayPort, supports a maximum resolution of 4096x2304@60Hz
  • 1 x HDMI? port, supports a maximum resolution of 4096x2160@24Hz
• Wirsless LAN & Bluetooth®
  • Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz up to 344 Mbps
  • Supports Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, 5
• Storage
  • Intel® Z390 Chipset
  • 4 x SATA 6Gb/s ports1
  • 2 x M.2 slot (Key M)1
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2260/ 2280 storage devices
  • M2_2 supports up to PCIe 3.0 x4, 2260/ 2280 storage devices
  • Intel® Optane? Memory Ready2
  • The SATA2 will be unavailable when installing M.2 SATA device into M2_1 slot.
  • Before using Intel® Optane? memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
• RAID
  • Intel® Z390 Chipset
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 for M.2 PCIe storage devices
• USB
  • Intel® Z390 Chipset
  • 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.1 connector)
  • 4 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
• Audio
  • Realtek® ALC892 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
• LAN
  • 1 x Realtek® 8111H Gigabit LAN controller
• Internal connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 2 x M.2 slots
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin Water Pump connector
  • 1 x 4-pin system fan connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Chassis Intrusion connector
  • 1 x 4-pin RGB LED connector
  • 1 x Clear CMOS jumper
  • 1 x TPM module connector
• Back panel ports
  • DisplayPort
  • LAN
  • HD Audio Connectors
  • USB 2.0
  • HDMI
  • USB 3.1 Gen1
  • USB 3.1 Gen2
  • Wireless / Bluetooth
  • Optical S/PDIF out

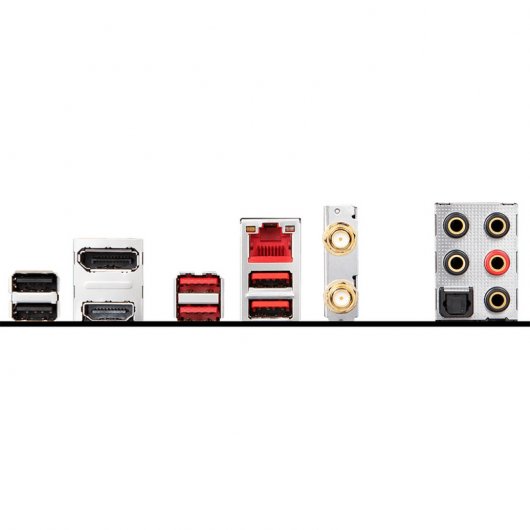

  • MSI Z390i GAMING edge_ac back panel ports
• Dimensions
  • 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
  • Mini-ITX Form Factor
• Mounting
  • 4 mounting holes
• Operating System
  • Support for Windows® 10 64-bit
